Mini Vee Race Boat Plans
Page Five
Beveling the Framework

Lots of beveling to do here: the plywood keel; the stringer along the coaming; cleats on bulkheads one and two; sheer clamps; stem and breasthook.

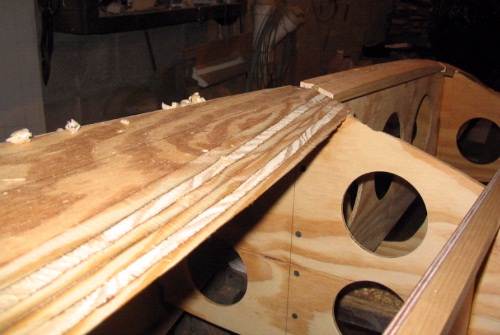

Here work has begun on the keel and stem.

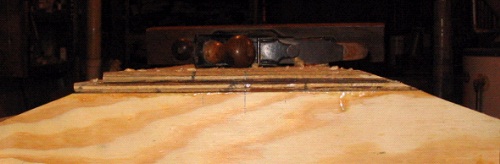

In this picture from the Pro Vee, the keel is being beveled, as seen from the transom.

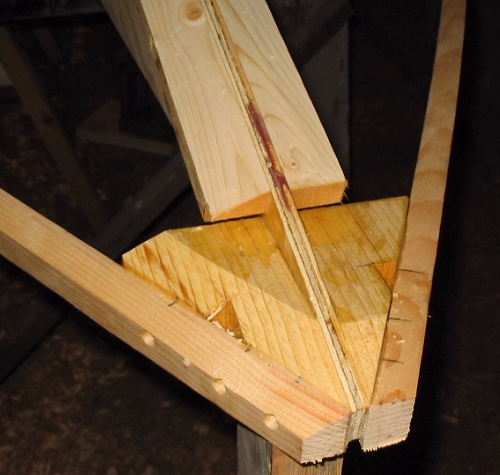

Another pic from the Pro Vee, where the plywood keel blends into the stem

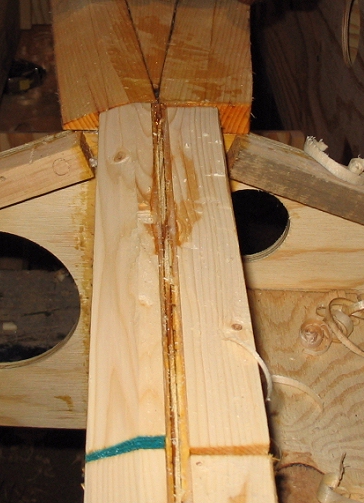

Beveling continues with the stem and breasthook.

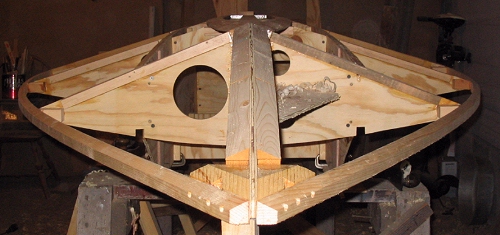

All beveled and ready for bottom planking.
